Tuesday, December 29, 2009
Monday, December 28, 2009
I spent the last few days with my parents in Alamo, TX where I learned that old people without jobs call themselves "retarded", RV-ers without houses call themselves "full-timers", and the most planned and highly anticipated event they do is "eat"; buffet at 1pm, snacks at 4pm, and dinner at 7pm. Then tomorrow we will sight-see a little...and then go to a buffet.
My parents are doing well, and they are very happy with life on the road. Which makes me happy; not happy enough to stay more than three days with them, but still happy. I'm sure they didn't mind me leaving a day early either, since life in an RV can be a little crowded. Next time I visit, I will have a place of my own to stay. Back at home, I decided to put a little time in the work shop...after shoveling up the driveway, unpacking the bags, and retrieving my 'best friend'.
Earlier last week, during some down time I planned out my separators for the shelf. Originally I had thought that I could just make them rectangular but had my doubts that it would flow with the curved designs on the sides. I had planned to make one rectangular separator and a second more elaborate curved design and then choose the one I liked better, but then inspiration struck. I had seen someone use Google sketchup to make a 3D rendering of a small dove-tailed box. If he can do it on that, why couldn't I use it to design my shelf. So I downloaded Google SketchUp and went to town on it.

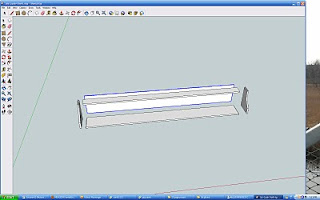

After a couple of days of learning how to use the program and building this mock up I decided to go with an angled separator. I will still modify the horizontal shelves but I like how this design came out and will definitely continue to learn SketchUp for future Projects.
Back in the garage/wood shop, I decided to make a template for the separators. I would shorten then base and top 1/4-inch and then angle it near the 2 1/2-inch mark. I would also extend the height 1/8-inch and make some dados in the shelves to receive them. (I will make those by hand this time). So I drew the dimensions on a piece of left over card stock that I had from the lathe table project and cut it out, then I taped it to a thin piece of press board that I saved from a small prefab cabinet I had dismantled.
After that I traced the template onto the 3/16-inch thick press board with graphite.
I then began the cut that would form the top of the template. I cut outside of the line because i wasn't certain of my sawing abilities and figured that I would plane it down to the line after cutting the shape out.
When I went to cut the short vertical area on the front I realized that I would have to have to transfer the template to the other side in order for me to cut it.
With the short vertical cut out and the excess removed, I began to saw the angled section.
I then realized that the crosssut saw I was using would bottom out on the brace of the saw...so I had to finish the cut with a Disston 23-inch saw with 6 teeth per inch. A little overkill, but it got the job done.
Having the basic shape cut out, I made traced the lines with a sharp knife to help with the planing (I probably could have done that earlier in the process, before the sawing), and clamped it in my make-shift face vise.
I planed the angled section first, the concentrated on the shorter bits.
I check the smaller areas for square and needed to do a little touching up.
This time I clamped the plane to the table and used it like a jointer. This allowed me to have better control of the cut.
After a few hours of work, this is the template I ended up with. This will now be used as a master template to make the 15 other separators.
Wednesday, December 16, 2009
Roy Underhill has opened his school doors to the public starting in January 2010! Roy is a highly skilled artisan with a wonderful sense of humor. Any who have watched Roy on his PBS show realize just how special the opportunity to learn from a master woodworker such as himself would be.
I do plan on visiting a few times once I get to North Carolina. :)
You can reach his website here: The Woodwright's Shop
Saturday, December 12, 2009
I've been debating how I should tackle this project since I have decided that I would like to woodwork without the use of power tools. Even if I decided to not use power tools, this project would still be marred by the fact that it had been touched by power tools, actually I was procrastinating because I wasn't certain how I wanted to cut the back panel. Let me rephrase that, I wanted to cut it square...I just wasn't sure that I was capable of that. I finally settled on cutting it close to dimension using the circular saw and planing it down.
I was so excited! I was anxious to plane. I've owned planes (a whole 3, including the one from the last post), but was never interested in sharpening them. My planing past is not something to brag about. I've since learned how to sharpen and was ready to try my hand.
I've tried many different set ups to sharpen: a slow grinding wheel, a fast grinding wheel, my grandfather's grinding wheel (serious). Nothing has ever made me feel good about sharpening. Then I read about the 'scary sharp' system.
At first, I thought the scary sharp was some sort of costly $500 gadget. I was seeing references everywhere I was looking. I was shocked to find out it was only sandpaper on a sheet of glass. Are you serious? I can sharpen my tools with this?? Why the heck didn't any one mention this to me before! Here I am working with dull tools because I can't sharpen to save my own life (I use disposable razors).
So I decide to use the scary sharp system to sharpen my #4 jack plane's blade, I really want to use this thing. I had a variety pack of sand paper, that should work and figured i would go get some spray adhesive and some glass at Lowes.
I head out on the town on my way to Lowes. Traffic is as only holiday season traffic can be, "are you serious, people?" mode. Soon, I find my driving happy place, the "I don't care how fast you think you should be going, I am not letting you get me in an accident" place. I get to Lowes safely, in once piece and head inside to find some spray adhesive. About 200 paces inside the store I realize that I left my wallet at home. "I guess I didn't really need glass or spray adhesive at this time," I think to myself and head back, avoiding the holiday crash derby.
Laying a sheet of sand paper on the work bench, I hold the sheet with one hand and move the flat of the plane iron over it. I had colored it with a permanent marker to check for low spots, and when I picked it up to see how flat the flat was....hmmm, this might take some time. What did I expect? The plane was a gift for a Harbor Freight shopper and was made in India, the sticker told me so. Even so, I would persevere!
I sanded on the work bench (ie, solid core door) surface, then upped the grit to 100 and then again to 60 (normal people people go the other way, not me, I'm special). Still worried about uneven surface of the work top, I tried sharpening on the wall mirror I have in the shop (don't ask). Yep, I held the paper to the mirror and tried that...that didn't last long, how did I think I was going to use the honing tool up there. I finally decided to find some old picture frame and use that. Searching the house I found my old bartender certificate behind a sheet of glass. Triumphant, I returned to the shop.
Flattening out the flat side of an iron sucks.... really. After getting it flat, I honed the other side and made a second bevel and then tried it out. OOOOOO, I was liking this. I tried it on end grain and it worked great! Proud of myself, I finally stopped procrastinating and cut the plywood.
Using a saw guide and circular saw I cut the plywood to length, leaving about it about 1/16 proud. Then I had to figure out a way to cut the length. I didn't have a rip saw yet, so that wasn't an option. My clamp guide was only 50" long so I couldn't use that either. I pieced together a couple of scraps to make an impromptu panel gauge and laid out the last two cuts I needed. I also cut them proud to allow a margin of error and would plane it down to its final dimension.
Here's a shot of my planing set up; a couple of wooden 8" clamps held onto the work bench with quick clamps. (and a beer)
...and a shot of the plane making some really good shavings.
After shaving it down, I fit it in, making minor corrections with the plane. I was ready to glue up!
I put the glue on, and set the back panel in place. I measured the corners to make sure it was square and used brads to hold it in place. Well....I used brads. My use of brads seems to mean that "holding" is optional. Some of my brads missed since I had planed the board so thin. In the end I put some clamps on it, cleaned up shop, and called it a night.
Here is the end of the day's efforts. You can see the impromptu panel gauge sitting on the lathe cabinet.
The essay is not going well. I'm supposed to write and cover the knowledge I've gained in my classes over the course of the past two years, but I'm not really sure how much of that I have retained. I submitted a proposal to write a paper about the economics of forestry and its relation to manufacturing which was accepted, but I'm really having a difficult time trying to decide where to go with it. I find great resources every where, but I always seem to uncover more than I expect. My knowledge of the subject was so much less than I anticipated and thinking too hard about it has been giving me headaches and completely stressing me out. So, even though I told myself I wouldn't hit the shop until the project was over, I went out anyway.
I figured that I could work on the job guide shelf for work, which has been sitting there lonely for the past two weeks. This project is basically a 9" x 60" shelf where a collection of 5" tall books can sit and look pretty. The books that will reside in this shelf are currently sitting in a pullout drawer that is too short and causing damage to the covers. It has been annoying me so much that I want to build some sort of shelf for them.
Using scraps of wood from the shed, I started making some plans for this shelf. I found some suitable left overs and headed to a friend's house to use their power planer (this was before I decided to stop using noisy tools). I had two longer pieces for the top and bottom, and one square piece I was going to rip into two end pieces.
Having them all planed, I ripped and cut them down to size: one 3" x 60" for the top, one 6" x 60 for the base, and 2 sides that were 6" at the base, 3" at the top, and 9" tall. In short time, I had a rabbit cut into all of them to hold a plywood backing and was ready to cut dadoes for the separators.
This is where it gets all sorts of ugly. Trying to think of a way to space the dadoes evenly was a challenge. At first I tried the table saw...no good, the piece was too long and the dado came out crooked. (Looking back, I guess I could have used the circular saw with a guide...duh). I then came up with a setup on the router table that would let me space the dadeos exactly at 3". That worked decently until I had too much of the board over the end of the table, causing another set of crooked dadoes. You figure that I would learn to take the tool to the wood after the first failed attempt.
Giving up, I took the top and bottom sections back to the planer, located 2 miles away and planed the dadoes back out, deciding to glue the separators in place. I then cut rabbits for the joints (I'm still not brave enough to try cutting dove tails) and glued the pieces, holding them together with brad nails. This brings us to now.
Here it is, sitting alone on the work bench for the past 2 weeks.
(continued in part 2)
Saturday, December 5, 2009
The meager number of tools shown above are: a Stanley No5 jack plane, 3 foot spirit level, drawknife, hand drill, and carpenter's square.
The square has a chunk missing out of the fence and the ruler is difficult to read. I may be able to clean it, but I'm not sure what to use and I'm afraid that I will end up loosing the measurements that are printed on it. I've got plenty of other squares of various shapes and sizes hanging all around the shop, but I continually find myself reaching for this old favorite that my Dad just recently handed down to me.The level is missing the vertical tube, but that doesn't stop me from using it as much as possible, the horizontal tube and bubble work just fine. I don't have any plans to fix it or retire it just yet.
The hand drill and drawknife shown above have never been used by myself. I'm sure the drill only requires a bit of clean up and lubing, but the drawknife will need some tender, loving care. A couple new handles, some rust-busting, and a super sharpening. If lucky, this drawknife will be a happy, in-use drawknife.
Sigh, the poor Stanley No. 5 jack plane. I removed the blade and sharpened it before realizing that the forward section of the plane had been welded, causing the plane to sit slightly nose up. I will ask my Dad the next time I see him, but most likely this plane will keep it's secret and retire, watching over the shop.
My final vintage tool, one not shown in the top most photo, in the grinding wheel. This grinder sat in my Dad's basement workshop all my life, and I remember turning the handle constantly just to hear it "WHIRRRRRRRrrrrrrrr", just as my Mom and her sibling's did it in my Grandfather's workshop when they were growing up. The wheel needs to be touched up but I still use it from time to time and the "whir" is just as exciting as ever.
I did have one more tool that was passed down, a saw. I'm not certain, but after some research I believe it was a crosscut saw, but stolen from storage while I was deployed to the Middle East.
Well, that's it. It's not a collection by any means, but each and every one of them is special. I do plan to add to my hand tool collection in the future, but these tools will always be the most important. Thanks for reading and I hope to see you all next time when I start talking about projects past.
